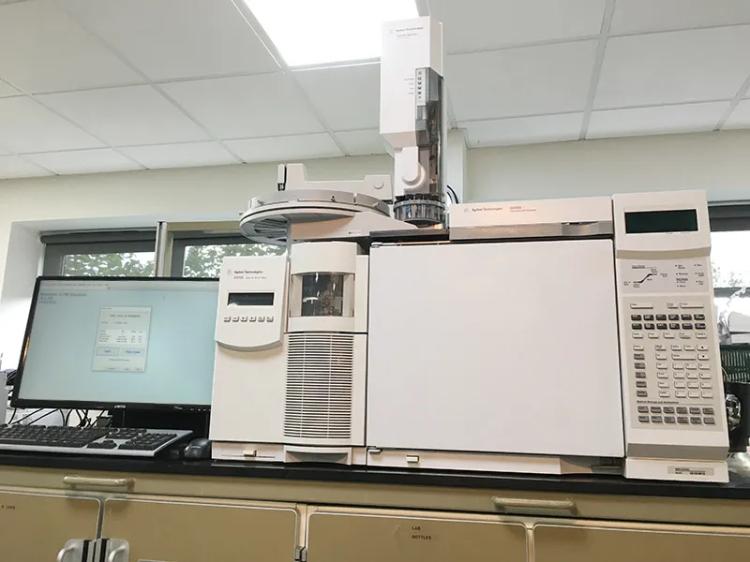

Used Agilent 5975B GC Mass Selective Detector

See the included photos displaying the pristine condition of the modules. Provided in full working conditioned and serviced, cleaned, tested and calibrated to our high standards, the system comes complete with PC/TFT Screen running Chemstation MSD, producing out-of-the-box' peaks.

Used Agilent 5975B Inert System Details

• Inert EI source for better performance
• Extended mass range
• Synchronous SIM/Scan with automatic setup
• New maintenance-free rough pump offerings
• Digital control of source gas flow rates
• Faster compound estimation with SemiQuant
• Improved Deconvolution Reporting Software with new Retention Time Locking databases

This Agilent 5975B inert XL model not only scans up to 1050 u but it does so with accuracy and precision you have come to expect from Agilent. The proprietary hyperbolic quadrupole design ensures the necessary resolution to produce classical isotope ratios and accurate mass assignment across the entire mass range (see data).The inert ion source requires less cleaning, since even the most active compounds have difficulty sticking to the inert material. So you can run sample after sample without compromising your data. The inert MSD Performance Electronics maximizes signal transmission for fast GC/MS in full scan, Selected Ion Monitoring (SIM) and Synchronous SIM/Scan modes.

• Proven ruggedness and reliability
• eMethods for simple method transfer
• SemiQuant for estimating concentrations of non-cali-brated compounds
• Expanded qualitative analysis capabilities
• Inert electron ionization (EI) source for better performance on active compounds
• Higher sensitivity
• Mass range up to 1050 u
• High performance SIM/scan with automated SIMsetup
• Mass stability - better than 0.10 u over 48 hours
• Performance electronics for 10,000 u/s scan speed(8,000 u/s write-to-disk)
• DRS and RTL ready
• Compatible with microfluidics flow controller andQuickswap
• Compatible with flip-top inlet sealing system
• Proprietary hyperbolic gold-coated quadrupole
• Heatable quadrupole to 200 °C
• Easy access to full ion optics
• High energy dynode and electron multiplier (EM)detector
• Two MS controls per PC
• Four simultaneous signal acquisitions (up to two MS)
• Intelligent sequencing for samples

Synchronous SIM/Scan is a mode of operation that enables collection of both SIM data and full scan data in the same acquisition. In many laboratories full scan is the most common form of data collection due to the ease of setup and the availability of spectral libraries. SIM mode, on the other hand, offers significant improvements in sensitivity over full scan data. However, SIM data cannot be searched against commercially available spectral libraries for match confirmation. The Agilent Synchronous SIM/Scan mode combines the best of both SIM and full scan into a single acquisition. Furthermore, the high-performance electronics of the 5975B inert MSD provides very fast and flexible SIM and Scan.

5975 MSD Specification

• Year of manufacture: 2006
• Product number: 5975B G3172A (Inert MSD)
• Ion source type: Non-coated, inert
• Mass Filter: Monolithic hyperbolic quadrupole
• Maximum Mass: 1050 Da
• Agilent 5975 Detector: EM with replaceable horn
• Scan rate: Up to 10,0000 amu/s
• EI Scan sensitivity: 1-µL injection of a 1-pg/µL OFN standard scanning from 50-300 u will give 175:1 S/Nat nominal m/z 272 ion
• Turbo Pump type: Performance Turbo (230 l/s)
• Ionization modes: Electron Impact (EI)

View Agilent's Specification

6890N Specification

Gas Chromatograph: Agilent 6890N G1530N Network, with Injector and Vial Tray

General System

• Windows 10 PC running MassHunter 10.0.368
• TFT Screen
• New Samsung printer
• Pfieffer Duo 2.5 Roughing Pump
• Option of a 7820A or CTC autosampler

Offered with a full Jaytee Biosciences 1 year on-site warranty, this system is in excellent working condition and is ready for full demonstration - enquire below.
