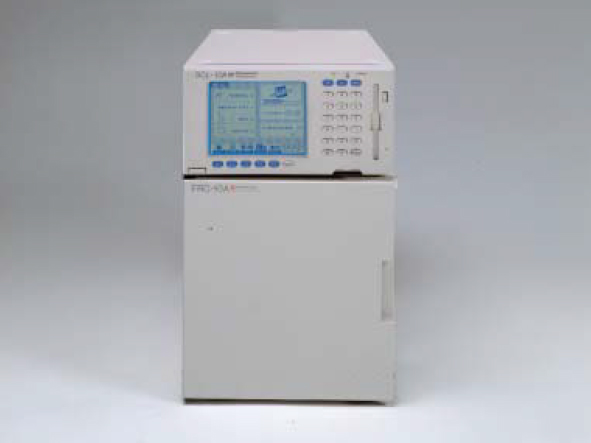

Used Shimadzu FRC-10A Fraction Collector
This Shimadzu FRC-10A fraction collector meets the demands for continuous, automated fraction collection. Pair the FRC-10A with the SCL-10AVP System Controller for a wide range of fraction collection applications.
Shimadzu FRC-10A Spec
This collector features precise Peltier temperature control for automated collection of thermallylabile fractions The FRC-10A Peltier temperature control keeps temperatures stable within a 4-70°C range.
Tailor the collector to your application requirements. Choose from collection criteria such as volume, threshold, and peak purity. A precise peak division feature ensures high purity fractions. The FRC-10A automatically adjusts for retention time shifts, so that only the peak of interest is collected. Our slope-override capability enables continued collection, even when the detector signal is off-scale
FRC-10A Drive System: Arm movement (X-Y) system
Collector Maximum flow rate: 150mL/min (water)
Collection method: Solenoid valve (incl.) or direct through nozzle (W/out solenoid valve)
Collection operation: Programmed operation via SCL-10AVP System Controller, or manually
No. of collection files: Up to 10 in memory (Total No. of program steps: 100)
Collection based on 2-channel generatedratio chromatogram: SPD-10AVP/10AVVP dual-wavelength signal, or signals from 2 detectors
Linking with external devices: With SCL-10AVP System Controller, any of LC-10AVP components may be linked
FRC-10A Fraction modes: Basic mode (using initial parameters), and Time Program mode (14 different functions available)
FRC-10ADimensions and Weight: 260mm (W), 420mm(D), 280mm(H). 15kg
Voltage: 230V
Warranty Terms & Conditions For Used Equipment
Note: Our warranty terms quoted for this instrument apply to mainland UK customers. For clients outside of this locale, please enquire at point of sale.
Jaytee Biosciences Ltd warranty all reconditioned instruments for a pre-agreed period. This period can be from 30 days to 1 year from the date of installation / delivery of the instrument. Generally newer equipment has a longer warranty than older equipment.
Additional warranty periods can be negotiated at the time of purchase if required.
The list below outlines the items covered by our warranty:
Parts Included In Warranty
- Electronic Assemblies – e.g. PCB’s, Transducers, Interface Cards
- Mechanical Assemblies – e.g. Pump Drive assemblies, XYZ Transport Systems
- Power Supplies – e.g Low and High Voltage Supplies, Lamp Supplies, Cases, Metalwork and Enclosures.
- Major assemblies – PCB’s, Power Supplies, and Displays etc covered for warranty term.
Typical Parts NOT Included In Warranty (fraction collectors)
- Wetted Path Components
- Software Updates
- Tubing and Fittings
- Capillaries
- Consumable Parts
- Tools
Enquire
Send us your details and one of our engineers will get back to you with availability and pricing. Alternatively, call us, quoting "st3250", on +44 (0)1227 265333.
