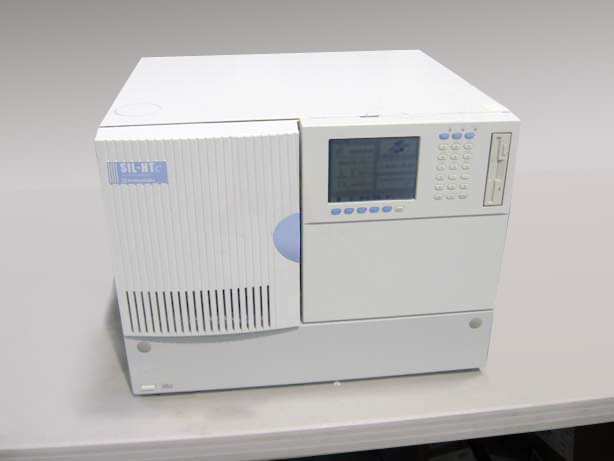

Used Shimadzu SIL-HTA Autosampler

Reference: st2656

£ 5,450

Model: SIL-HTA Manufacturer: Shimadzu Qty available: 1 Warranty: 3 month RTB Warranty

Shimadzu SIL-HTa Autosampler (non-chilled).

Features

High throughput

The SIL-HTa maximizes analysis throughput with fast sample injection and high sample capacity. Injection speed is 15 seconds for injecting samples of 10µL.

Excellent repeatability
The SIL-HTa uses a needle-in-the-flow-path injection design (also called direct injection method or total volume injection method) and a high-performance measuring pump (6nL step resolution) for enhanced accuracy. This results in superior repeatability over conventional autosamplers. In addition, precious samples are not wasted since the total volume aspirated is injected.

Specification:
Shimadzu SIL-HTa Sample Injection System Total sample injection, variable sample injection system (zero sample loss during injection).

Shimadzu SIL-HTa Settable Range Of Injection Volumes
0.1 to 1000µL (standard), or 1 to 20000µL (option) (0.10µL steps from 0.1 to 0.90µL, and 10µL steps from 1 to 20000µL)

Shimadzu SIL-HTa Sample Processing Capability

With 1-mL vials: 350
With 1.50mL vials: 210(SIL-HTa), 140(SIL-HTc)
With 4-mL vials:100
With micro plates:4 (96 wells: 384, 384 wells: 1536)
With deep-well plates: 4 (96 wells: 384, 384 wells: 1536)

Shimadzu SIL-HTa Injection Volume Repeatability
RSD: 0.3% max. (at 100µL injection)

Shimadzu SIL-HTa Cross Contamination
0.01% max. (for analysis of naphthalene)

Number Of Injections
1-99 times per sample

Input/Output Terminals: External start input: 1, Error input: 3, External output(EVENT 1,2,3,4): 4, Output for external control (AC Remote):1, Optical link: (for Chromatopac), 8 (for LC unit control), RS-232C: 1 (for PC connection)

Pump Control: Solvent delivery models: isocratic, high-pressure gradient, low-pressure gradient, constant pressure solvent delivery. Programs: flow volume, pressure, concentration, upper pressure limit, lower pressure limit, linear step, index function (all are multiple steps).

Autosampler Control: Sample injection volume, number of repeated analyses, analysis time, analysis file unmber, etc.

Shimadzu SIL-HTa Specifications

Operating pH Range: pH: 1 to 14 standard

Wetted Surface Material: SUS316, PEEK, Ceramics

Operating voltage: 230V

Dimensions: 540 (W) x 500 (D) x 415 (H) mm

Weight: 40kg

Please enquire for full pricing on this excellent instrument.

Warranty Terms & Conditions For Used Equipment

Note: Our warranty terms quoted for this instrument apply to mainland UK customers. For clients outside of this locale, please enquire at point of sale.

Jaytee Biosciences Ltd warranty all reconditioned instruments for a pre-agreed period. This period can be from 30 days to 1 year from the date of installation / delivery of the instrument. Generally newer equipment has a longer warranty than older equipment.

Additional warranty periods can be negotiated at the time of purchase if required.

The list below outlines the items covered by our warranty:

Parts Included In Warranty

  • Electronic Assemblies – e.g. PCB’s, Transducers, Interface Cards
  • Mechanical Assemblies – e.g. Pump Drive assemblies, XYZ Transport Systems
  • Power Supplies – e.g Low and High Voltage Supplies, Lamp Supplies, Cases, Metalwork and Enclosures.
  • Major assemblies – PCB’s, Power Supplies, and Displays etc covered for warranty term.

Typical Parts NOT Included In Warranty (autosamplers)

  • Needle
  • Needle Seat
  • Needle Seat Holder
  • Rotor Seal
  • Stator Face
  • Isolation Seal
  • Plunger
  • Plunger Seals
  • Syringes
  • Wetted Path Components
  • Software Updates
  • Tubing and Fittings
  • Capillaries
  • Consumable Parts
  • Tools

Enquire

Send us your details and one of our engineers will get back to you with availability and pricing. Alternatively, call us, quoting "st2656", on +44 (0)1227 265333.
